Polymer Modified Bitumen PMB 120 Description
PMB 120 or Polymer Modified Bitumen 120 a specially manufactured bitumen with polymers to deliver superior performance. this grade used in demand exceptional elasticity, durability, and resistance to deformation under the heaviest traffic conditions. we manufacture high-quality PMB 120 to withstand extreme temperature variations, long traffic loads, and harsh environmental conditions.
Polymer Modified Bitumen 120 is a specialized polymer-modified bituminous binder engineered for pavement applications in cold climates and environments that demand exceptional flexibility. Developed in accordance with IS 15462:2017, this grade combines conventional bitumen with advanced performance polymers to deliver superior resistance to low-temperature cracking, fatigue distress, and thermal-induced stresses.
With its high penetration value and outstanding ductility, PMB 120 ensures an elastic and durable pavement surface, particularly in regions where traditional bitumen fails to maintain adequate performance. Its tailored formulation makes it an ideal choice for infrastructure requiring long-term resilience against severe temperature fluctuations and mechanical loading.
Application of PMB 120
Poymer Modified Bitumen 120 is recommended for premium and specialized asphalt projects:
- Bridge Decks & Expansion Joints
- Intersections and roundabouts
- Crack-Sealing & Joint-Sealing Applications
- SMA Mixtures (Stone Mastic Asphalt)
- Flexible Pavements in Cold Climates
- Bitumen for railway ballast and port paving – suitable for heavy loads.
- Airport runways – designed for heavy traffic loads
Advantages
- Very high elastic recovery
- Excellent low-temperature flexibility
- High-viscosity, high-cohesion binder
- Strong fatigue resistance
- Low temperature susceptibility
- Excellent waterproofing behavior
Key Features of Polymer Modified 120
*Polymer Modification
PMB 120 is formulated using high-performance polymers such as styrene-butadiene-styrene (SBS), ethylene-vinyl-acetate (EVA), or comparable modifiers. These additives significantly enhance the bitumen’s structural properties, improving its resistance to permanent deformation, thermal cracking, and oxidative aging.
*High Elastic Recovery
Thanks to its advanced polymer composition, PMB 120 demonstrates superior elastic recovery, enabling the binder to regain its original shape after deformation caused by heavy and repetitive traffic loading. This elasticity contributes to extended pavement life and improved performance under stress.
*Enhanced Performance Resistance
PMB 40 offers remarkable resistance across a wide range of operational conditions, including:
- Rutting resistance at elevated temperatures
- Crack resistance at low temperatures
- Excellent fatigue resistance under continuous and repeated traffic loads
These enhanced characteristics make PMB 120 an optimal choice for high-stress asphalt applications requiring long-term durability and stability.
Specification of Polymer Modified Bitumen PMB 120
| Designation | PMB 120 | Test Method |
|---|---|---|
| Penetration at 25 ֯C, 1/10mm, 100g, 5 sec | 90-150 | ASTM D5 |
| Softening Point, (R&B), ֯C, Min | 50 | ASTM D36 |
| Elastic Recovery at 15 ֯C ,%, Min | 60 | ASTM D6084 |
| Flash point , COC, ֯C , Min | 220 | ASTM D92 |
| Separation, Difference in Softening Point,(R&B), ֯C, Max | 3 | ---- |
| Thin Film Oven Test & Test on Residue | ||
| Loss in Mass, %, Max | 1.0 | ASTM D1754 |
| Reduction in Penetration of residue at 25 ֯C , 100g, 5s, %,Max | 35 | ASTM D5 |
| Increase in Softening Point, ֯C, Max | 7 | ASTM D36 |
| Elastic Recovery at 25 ֯C, %, Min | 50 | ASTM D6085 |
Packing of Polymer Modified Bitumen

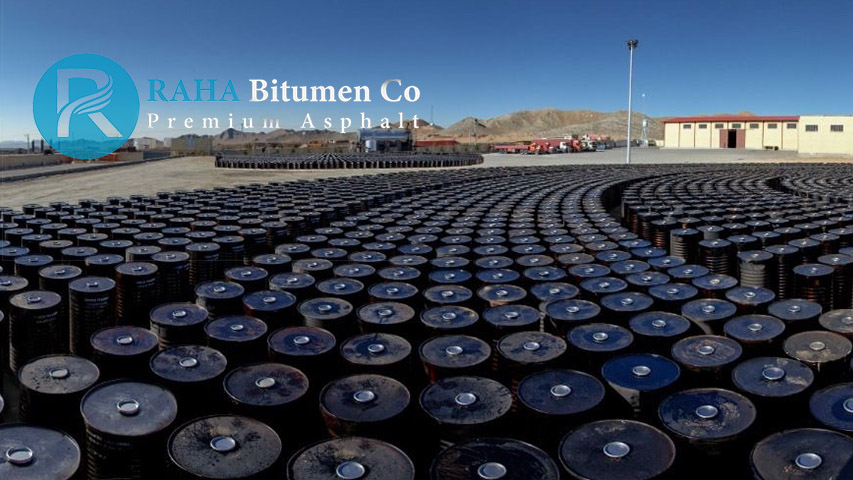

New Steel Drum
- 180kg New Steel Drum =>
Loading 110 Drum in 20ft Container= 19.80 Ton Net - 150kg New Steel Drum =>
Loading 110Drum in 20ft Container= 16.50 Ton Net
Jumbo Bag
- 1MT Jumbo Bag with Steel Cage and Pallet or in (Wooden Box Pallet) => Loading 20*1000kg Jumbo Bag in 20ft Container = 20Ton Net
- 1MT Jumbo Bag without Steel Cage and Pallet => Loading 24*1200kg Jumbo Bag in 40ft Container = 24Ton Net
Bulk in Bitumen Tanker
Loading of 24-25Ton in Tanker Truck
Supplier of Polymer Modified Bitumen 120 (PMB 120)
At RAHA Bitumen Co., as a PMB 120 in different types and grades. With over 15 years of experience, we have built strong partnerships with road construction companies across many countries. If you have any questions or inquiries, please don’t hesitate to contact us.
- Leading supplier & exporter of Grade PMB 120 from Dubai UAE
- High melting point bitumen with low penetration for tough conditions.
- Competitive pricing with premium quality guarantee.
- Bulk and bagged bitumen export solutions for easy shipping
- Secure and reliable international distribution.
Our Payment Term
Our terms of payment are TT/30% in advance and balance after copy of BL. This secures 30% of the payment in advance while the remaining balance is settled when a copy of the Bill of Lading has been availed, ensuring goods are in transit and well documented.
How can I order ?
To place an order , customers can start by selecting the required grade and type of packaging. After confirming the specifications, an official quotation and proforma invoice will be issued. Upon agreement, the customer proceeds with the payment according to the provided terms. Once payment is received, the shipment process will begin, including coordination for delivery to the specified destination in Guinea-Bissau . Our team will assist at every step to ensure a smooth and timely supply. As a Bitumen Supplier in Across the World , our team will assist at every step to ensure a smooth and timely supply. (Contact Us)
